State Diagram – Car

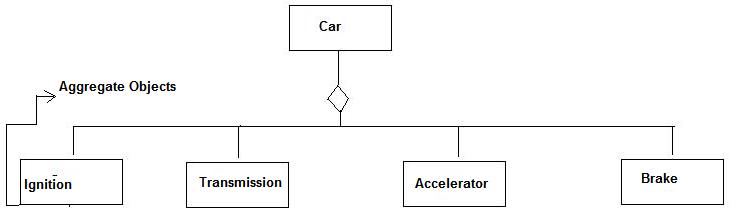

The state diagram may be drawn by considering the concurrency property of the aggregate objects that make up the car object ie. each aggregate object has a state of its own. Below is a sample state diagram for a Car object

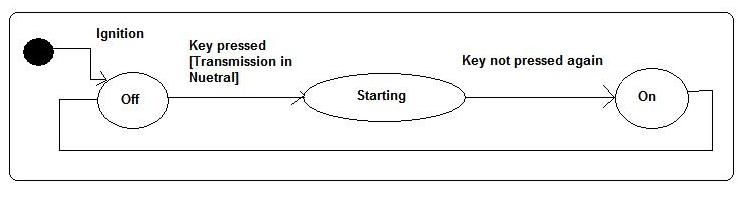

Below is the state diagram for Ignition System –

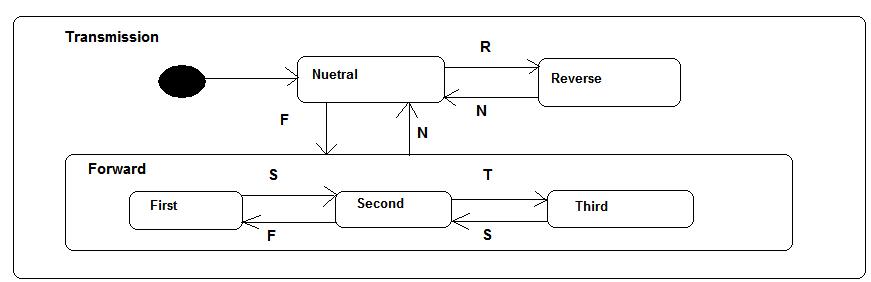

State Diagram – Transmission

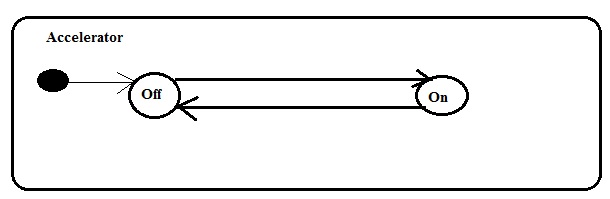

State Diagram – Accelerator

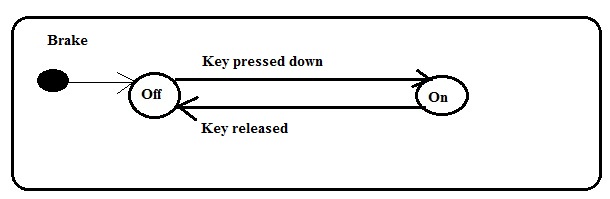

State Diagram – Brake
